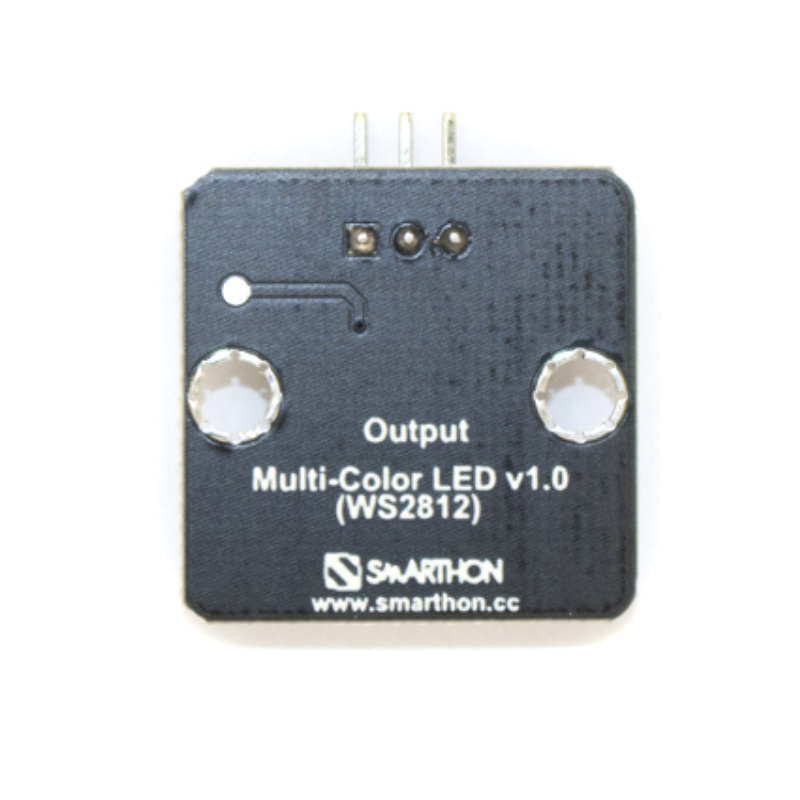

Smarthon White LED and Multi LED

• The WS2812B have a small chip inside the module, which handle the incoming data and communicate with the next WS2812B in the serial. WS2812B operation under digital, user need to follow the special logic representation to transmits the data. WS2812B allow connect to other WS2812B and share the signal line, but benefit from the data transmission policy, it can use the single line to control all the light individually. For each WS2812B, there are three 8bit color LED (Green, Red, Blue) inside, so each 2812B required total 24bit of data in once action. After the 24 bits data read by WS2812B, the remaining data bit will pass to next 2812B(if need), so the next 2812B is possible to read another set of data to produce different color. When all the data bit is sent, another 50us reset code is required to let chip understand the transmission is end and control the led to emit the light.

Specification:

• Supply Voltage: 3.3V to 5V
• Interface: Digital
• Range of Color: (0,0,0) to (255,255,255)

———————————————————————————————————————————————————–

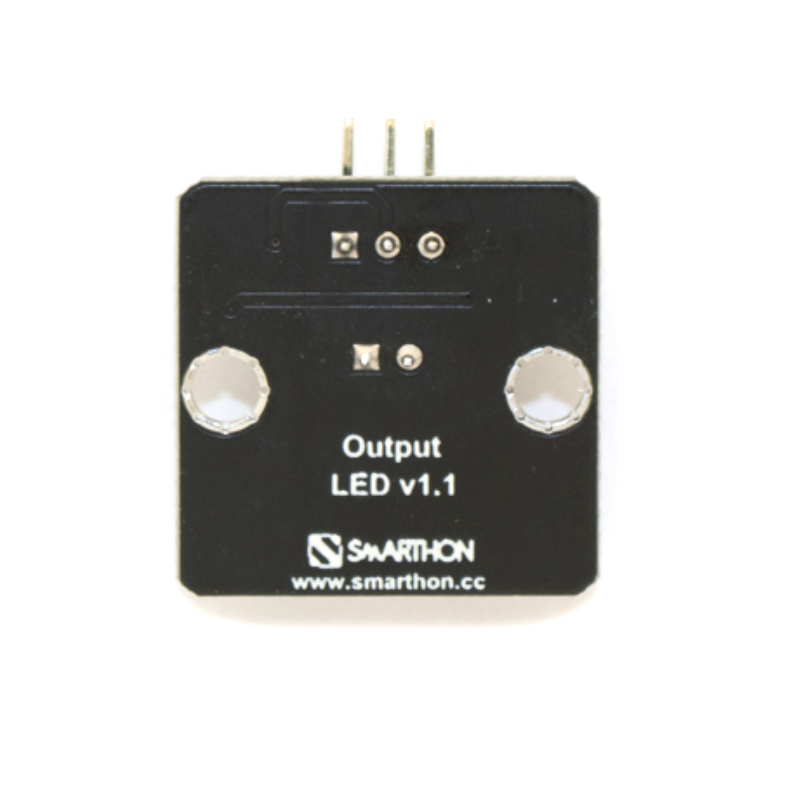

White LED module build in a high performance LED for different usage, such illuminate, express program status, or make visual presentation. User just need to provide voltage, then can control the brightness by the corresponding input.

Working Principle:

• White LED module builds in a high performance LED for different usage, such as illuminate, express program status, or make visual presentation. User just needs to provide voltage, then can control the brightness by the corresponding input.

Specification:

• Operate voltage: 3 – 5V
• Power consumption: 0.06W
• Efficiency: 90 lm/W
